Hireworks NT

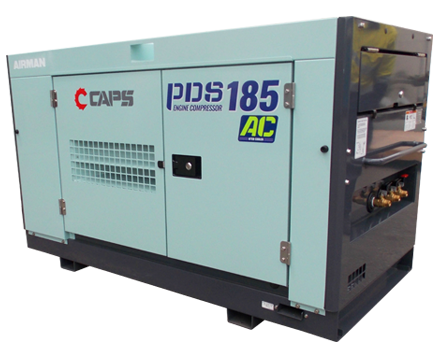

Air Compressor 180 CFM Diesel

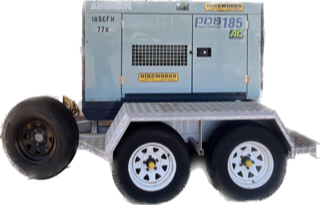

Skid or trailer mounted

PDS185SC Specs

Specifications

Capacity (CFM) 185

Working Pressure (psi) 100

Configuration Box

Capacity (m3/min) 5.2392

Max. Pressure (psi) 120

Aftercooled Yes

Engine YANMAR 4TNV88-BXDHKSR

Engine Rated Power (kW) 34.90

Fuel Tank Capacity (L) 90

Run Time (h @ 70% load) 14.3

Dimensions LxWxh (mm) 1,970 x 950 x 1,080

Weight (Wet/Dry) (kgs) 860/765

Noise Level dB(A)@7m 68
